3. How to use the workbenches

One of the biggest difficulties for new users of 3D-CAD-Pro, is to know in which workbench to find a specific tool. The table below will give you an overview of the most important workbenches and their tools. Refer to each workbench page in the 3D-CAD-Prodocumentation for a more complete list.



Four workbenches are also designed to work in pairs, and one of them is fully included into the other: Arch contains all the Draft tools, and PartDesign all the Sketcher tools. However, for clarity, they are separated below.

1. part

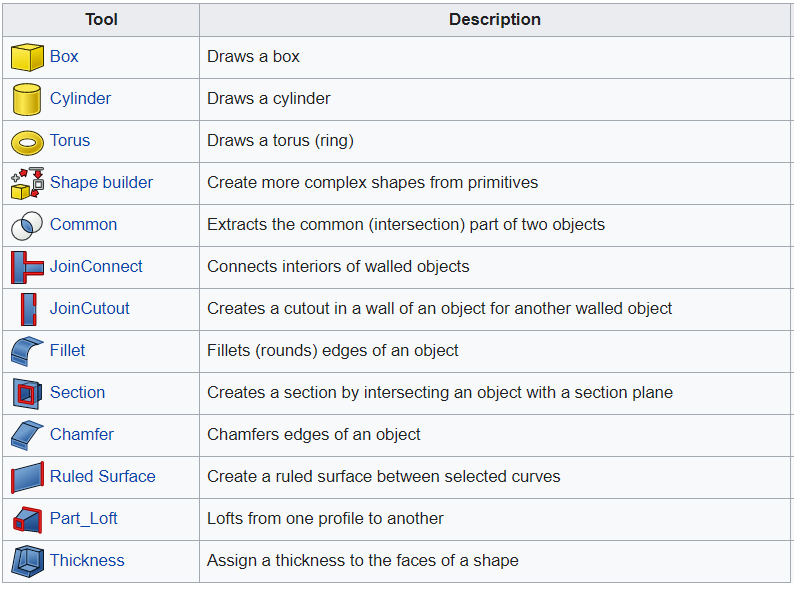

The Part Workbench provides basic tools for working with solid parts: primitives, such as cubes and spheres, and simple geometric operations and boolean operations. Being the main anchor point with OpenCasCade, the Part workbench provides the foundation of 3D-CAD-Pro's geometry system, and almost all other workbenches produce Part-based geometry.



2. Draft

The Draft Workbench provides tools to do basic 2D CAD drafting tasks: lines, circles, etc... and a series of generic handy tools such as move, rotate or scale. It also provides several drawing aids, such as grid and snapping. It is principally meant to draw the guidelines for Arch objects, but also serves as 3D-CAD-Pro's "swiss knife".

3. Sketcher

The Sketcher Workbench contains tools to build and edit complex 2D objects, called sketches. The geometry inside these sketches can be precisely positioned and relationed by the use of constraints. They are primarily meant to be the building blocks of PartDesign geometry, but are useful everywhere in 3D-CAD-Pro

4. Part Design

The Part Design Workbench contains advanced tools to build solid parts. It also contains all the tools from the sketcher. Since it can only produce solid shapes (the rule number one of Part Design), it is the main workbench to use when designing pieces (parts) to be manufactured or 3D-printed, as you will always obtain a printable object.

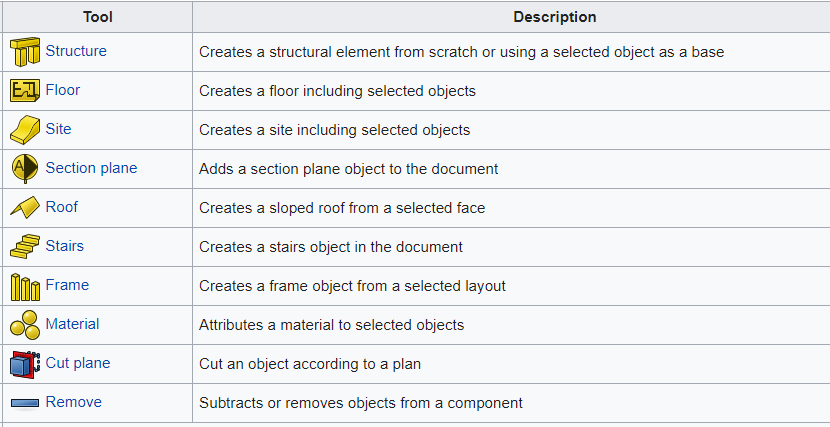

The Arch Workbench contains tools to work with BIM projects (civil engineering and architecture). It also contains all the tools from the Draft workbench. The main use of the Arch Workbench is to create BIM objects or give BIM attributes to objects built with other workbenches, in order to export them to IFC.

6. Drawing

The Drawing Workbench handles the creation and manipulation of 2D drawing sheets, used for displaying views of your 3D work in 2D. These sheets can then be exported to 2D applications in SVG or DXF formats, to a PDF file or printed.
